Press mounted drying hopper

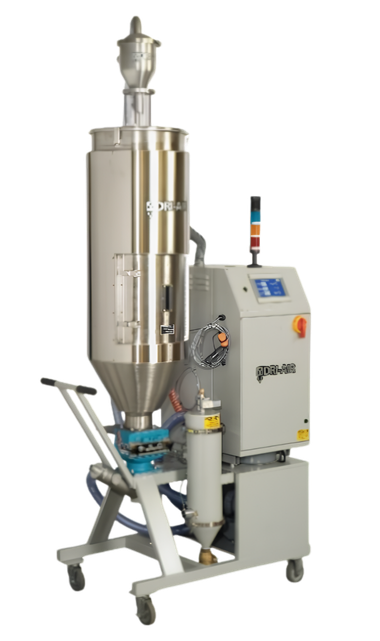

Drying hopper on floor stand

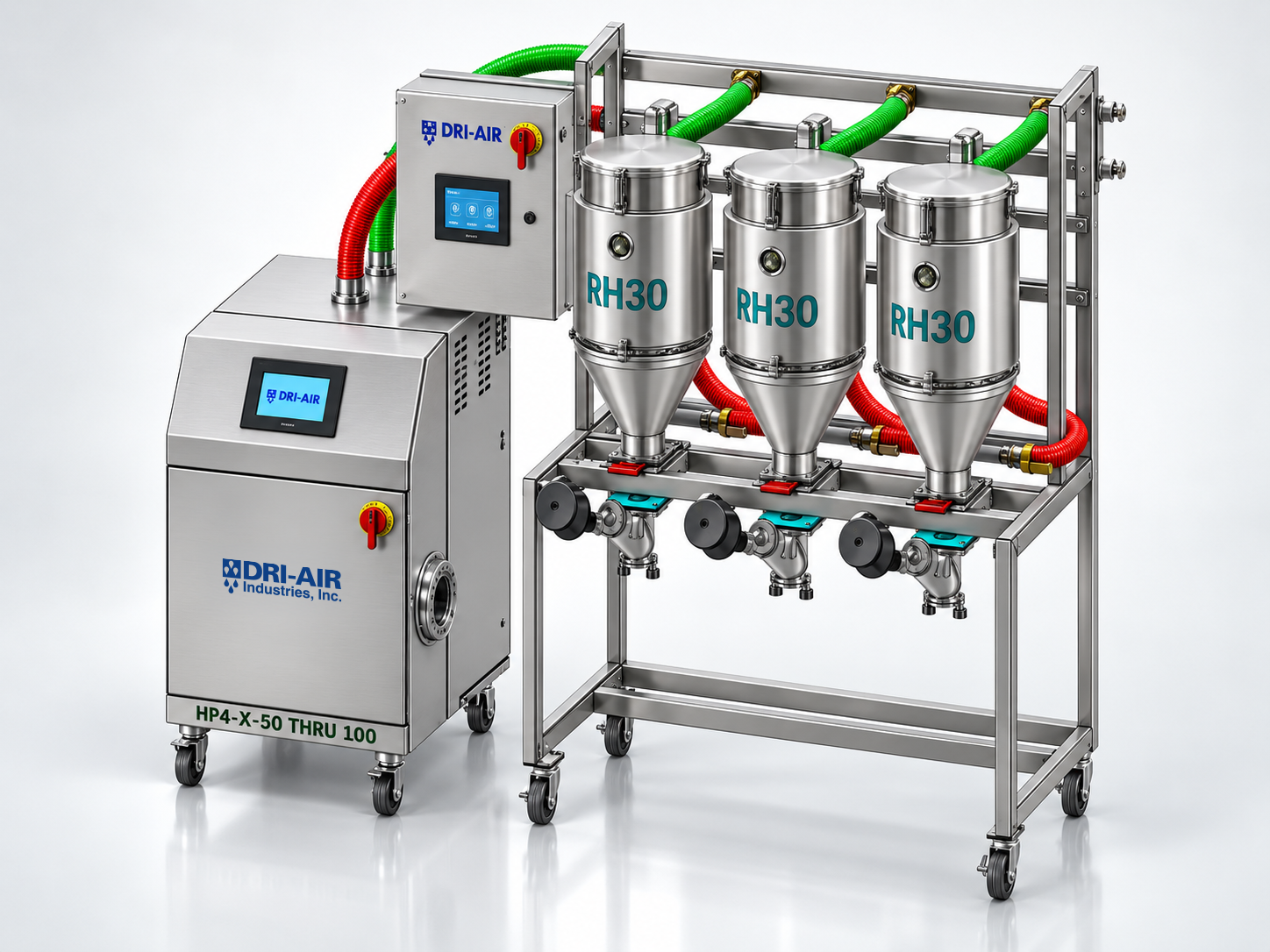

Multiple hopper bank
2 BED ARID-X SERIES

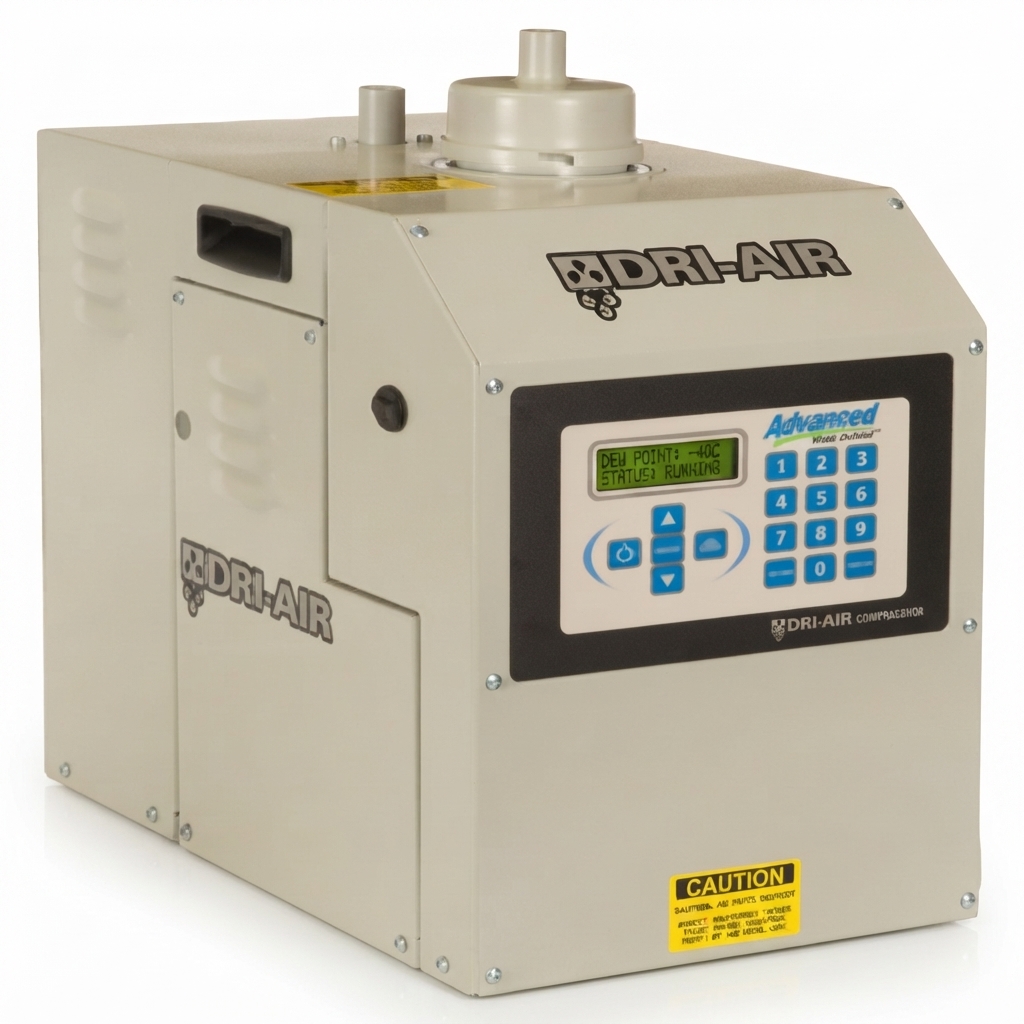

ARID-X 10 MINI
Up to 10 lbs/hr

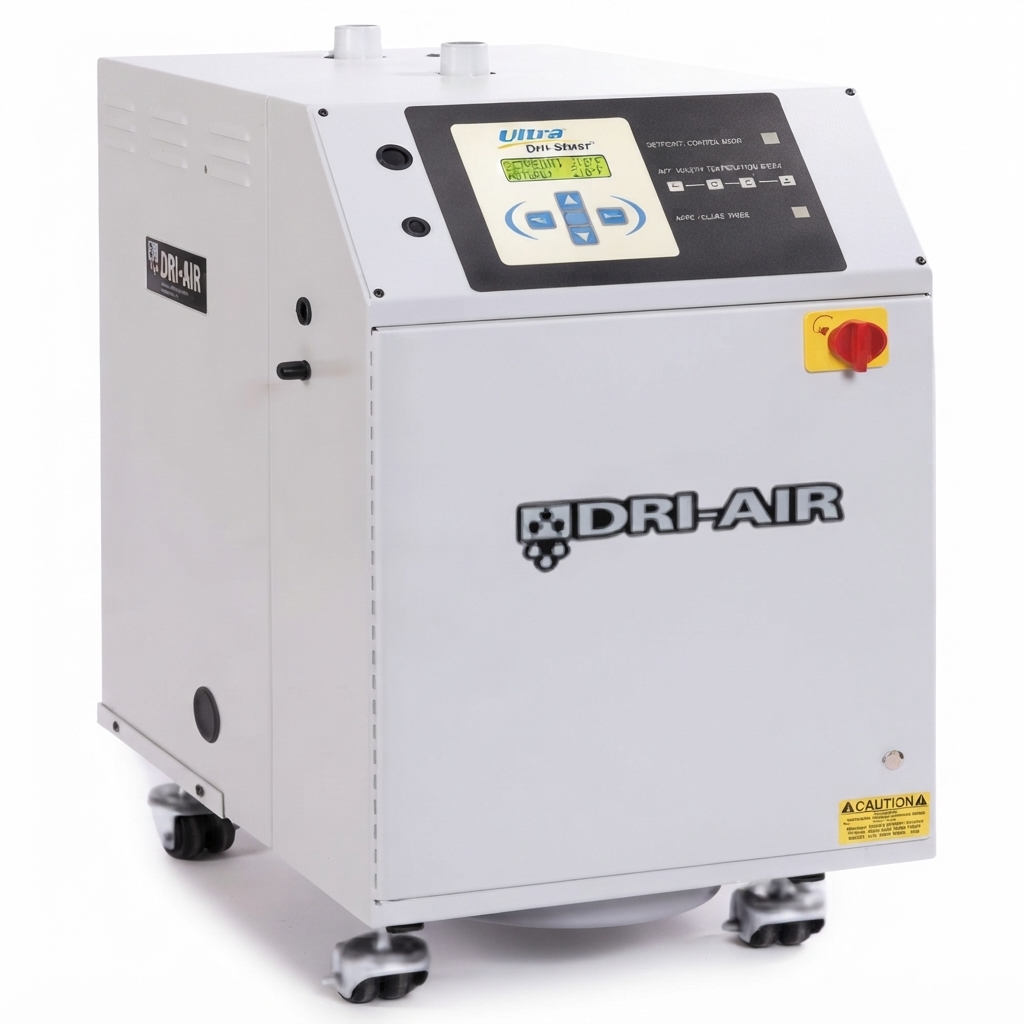

ARID-X 25-35
Up to 35 lbs/hr

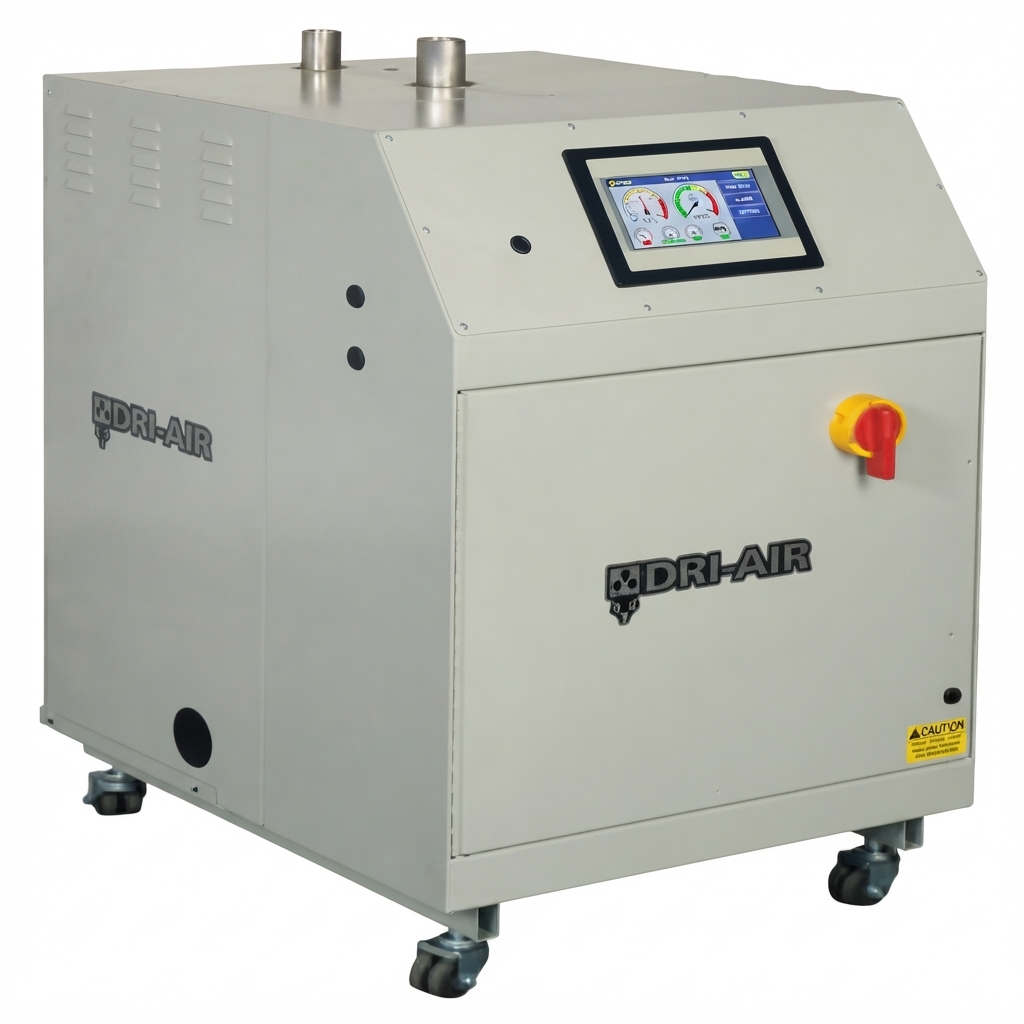

ARID-X 50-100
Up to 100 lbs/hr

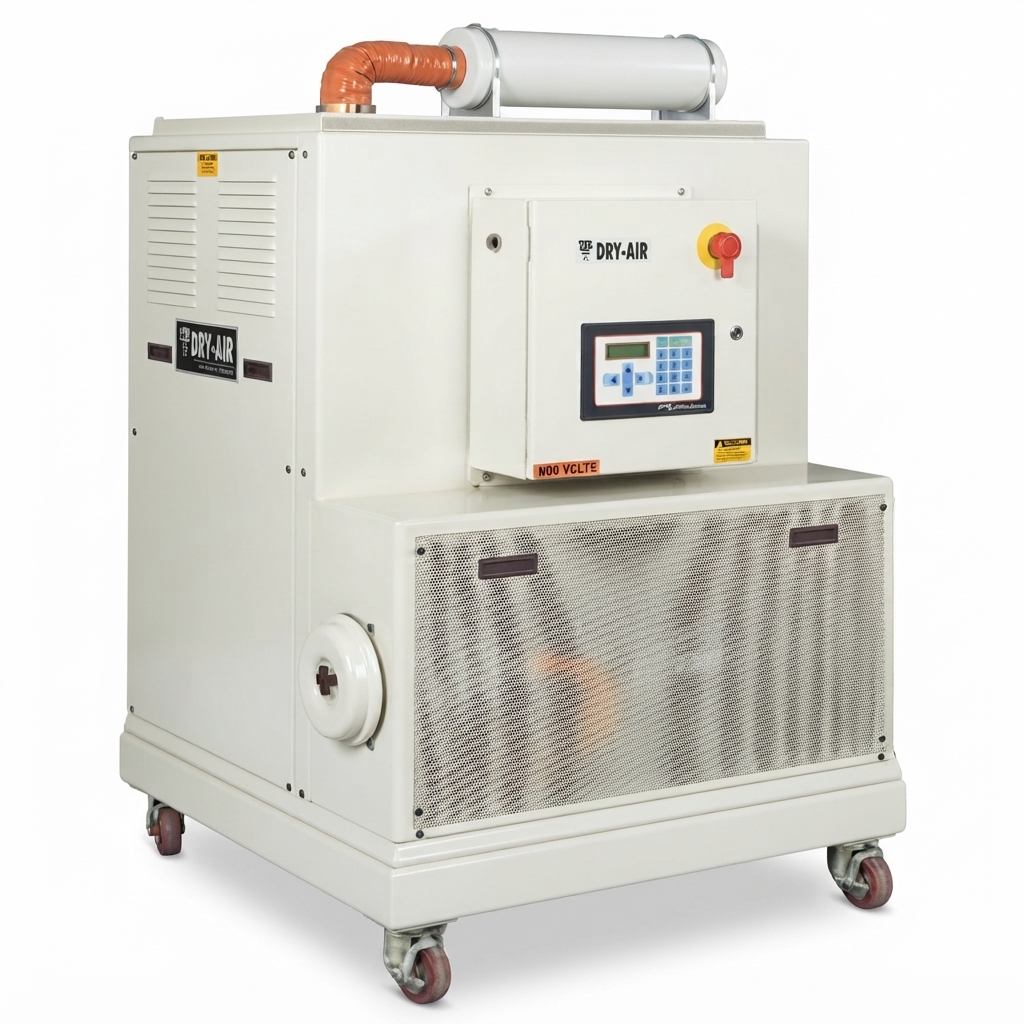

ARID-X 150-200
Up to 200 lbs/hr
4 BED HP4-X HIGH-PERFORMANCE SERIES
HP4-X 25-35
Up to 40 lbs/hr

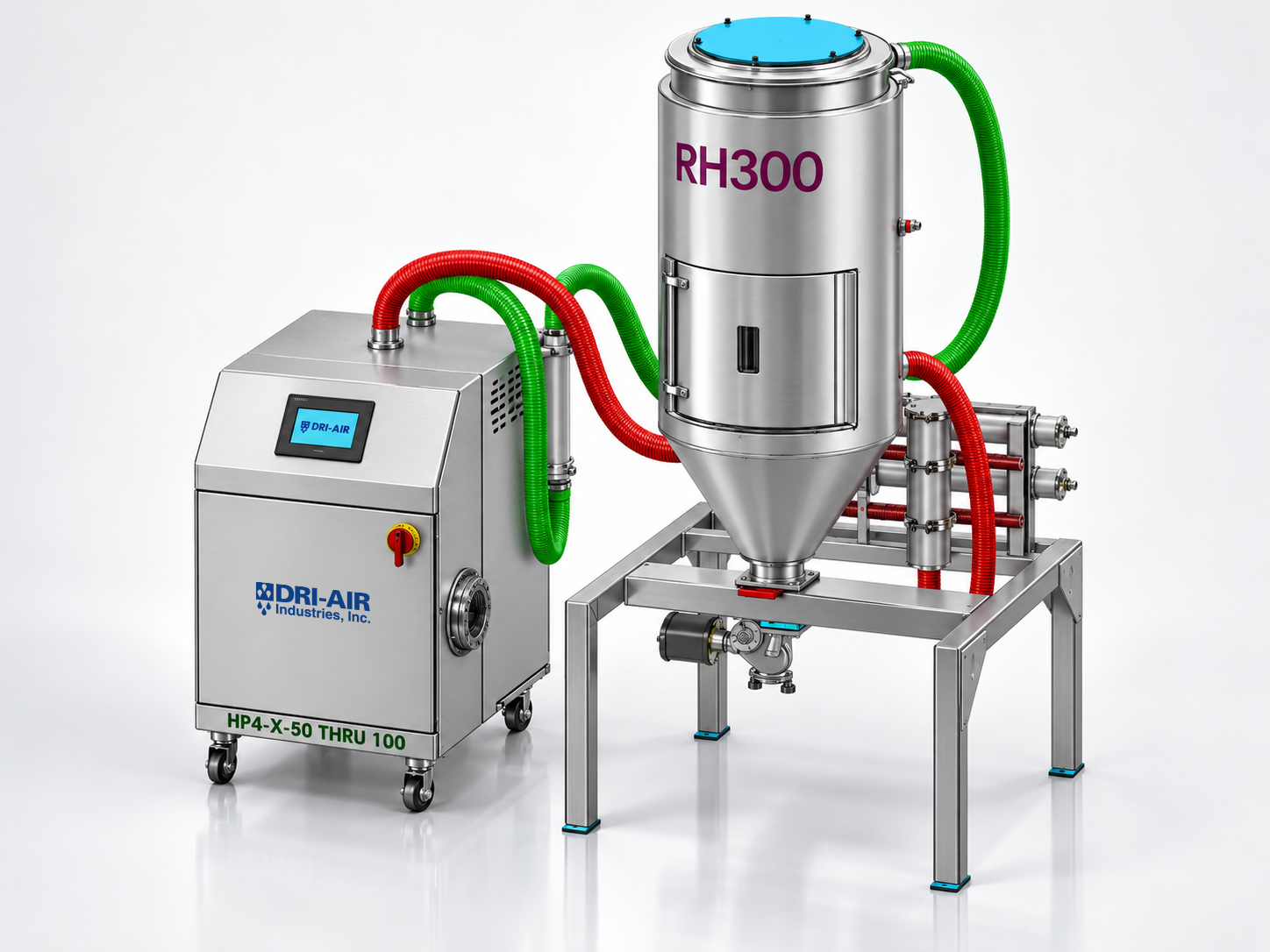

HP4-X 50-100
Up to 100 lbs/hr
HP4-X 150-300
Up to 300 lbs/hr

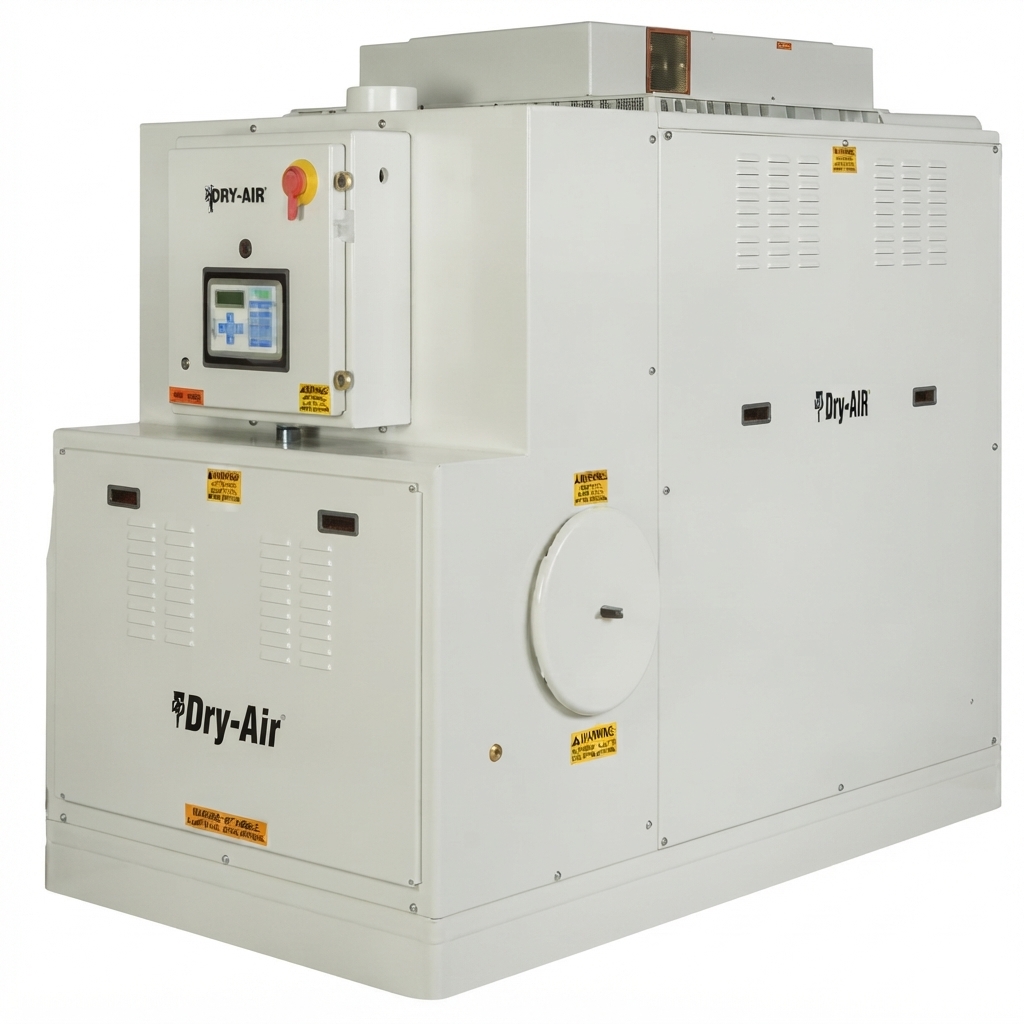

HP4-X 500-1000
Up to 1,000 lbs/hr

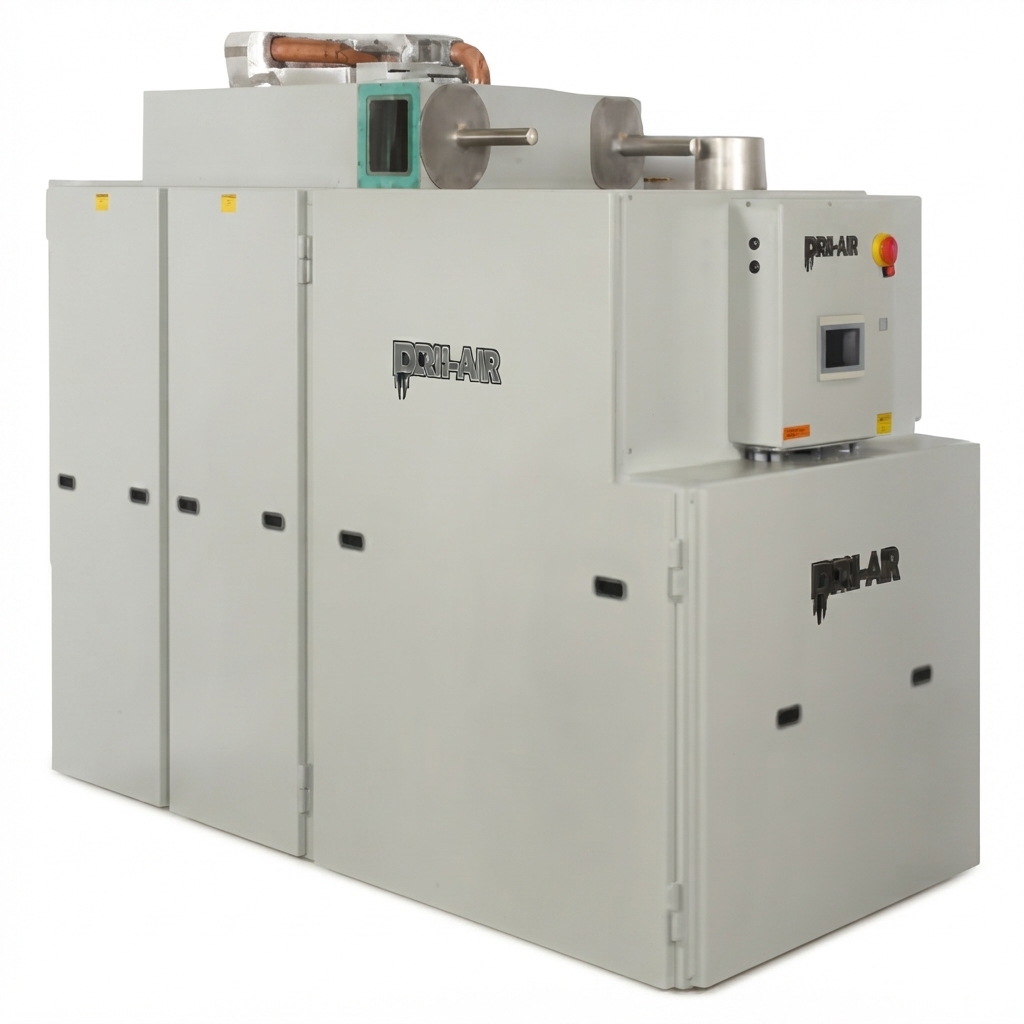

HP4-X 1500-3800
Up to 3,800 lbs/hr

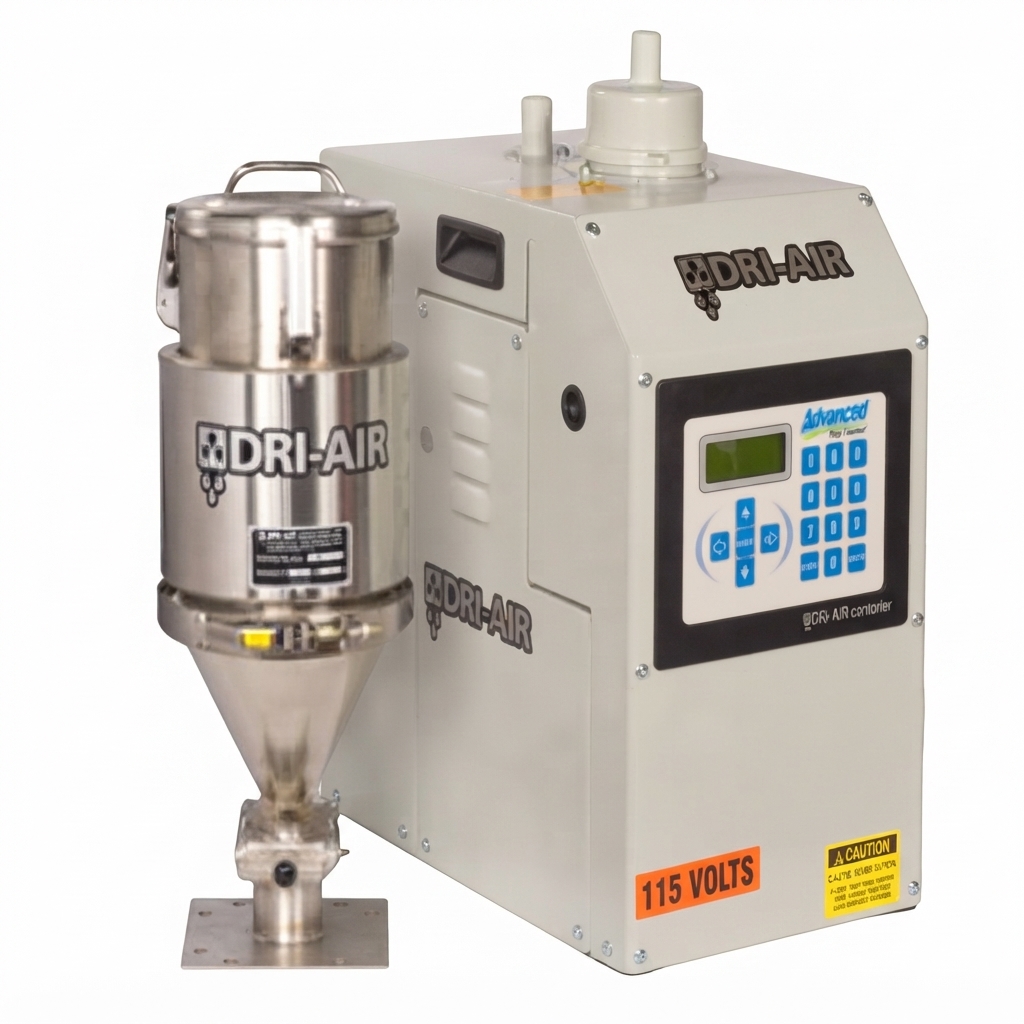

Choose your drying hopper
The Arid-X 10 is available with three hopper sizes to match your application. Mounting the drying hopper directly on the press or extruder keeps resin dry at the throat with no moistre regain, so material reaches the screw perfectly dried. Choose your hopper based on throughput
- 5-pound hopper for up to 2 to 3 pounds per hour
- 15-pound hopper for up to 5 to 6 pounds per hour
- 30-pound hopper for up to 10 pounds per hour

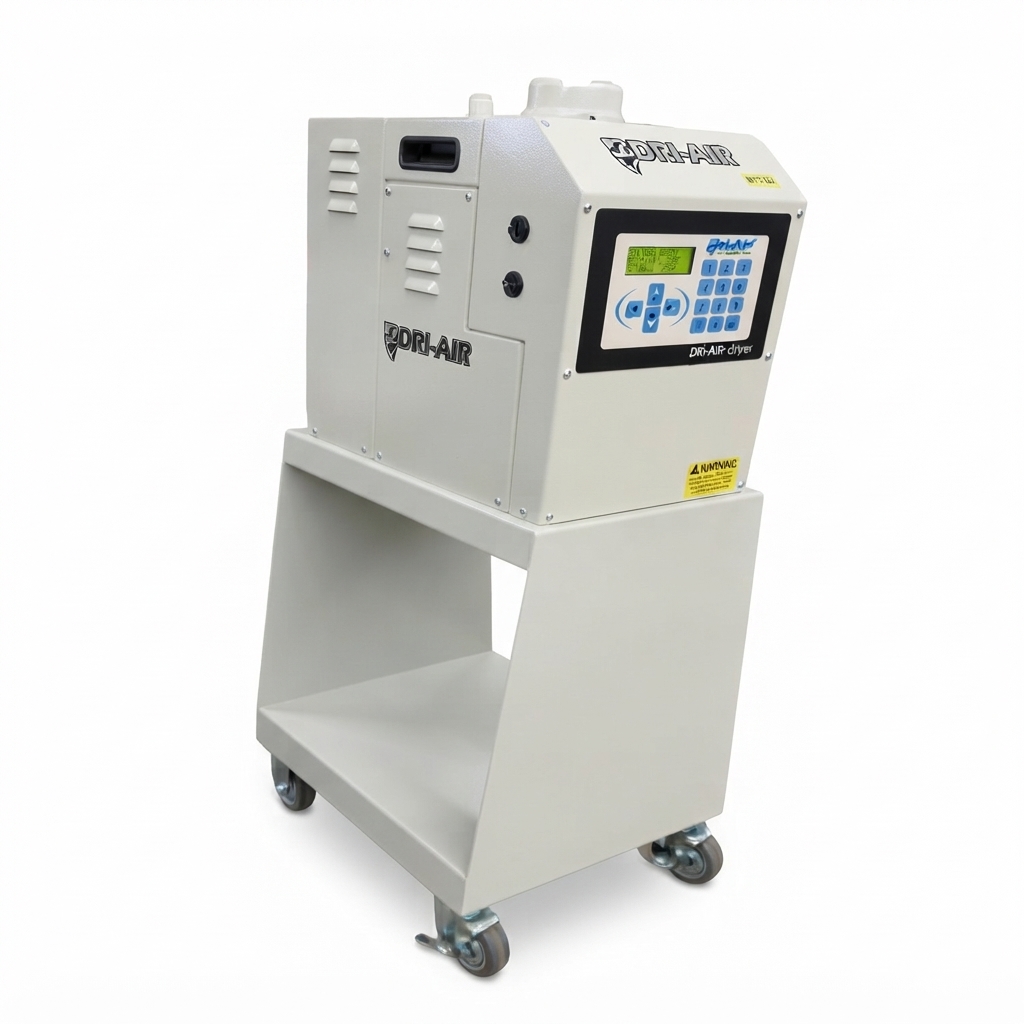

Castered floor stands
Castered floor stands are available for portability between machines, so one dryer can move from press to press as your schedule changes

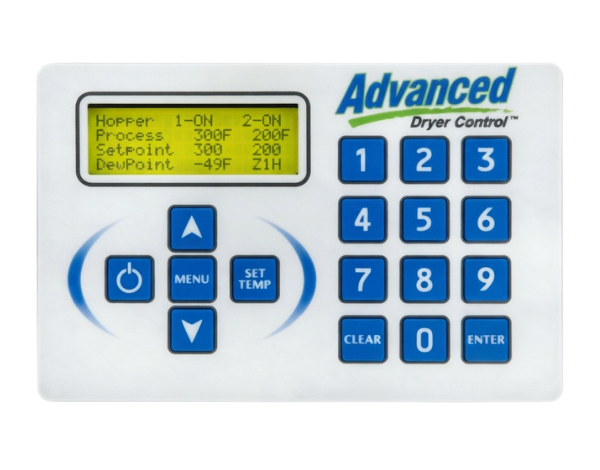

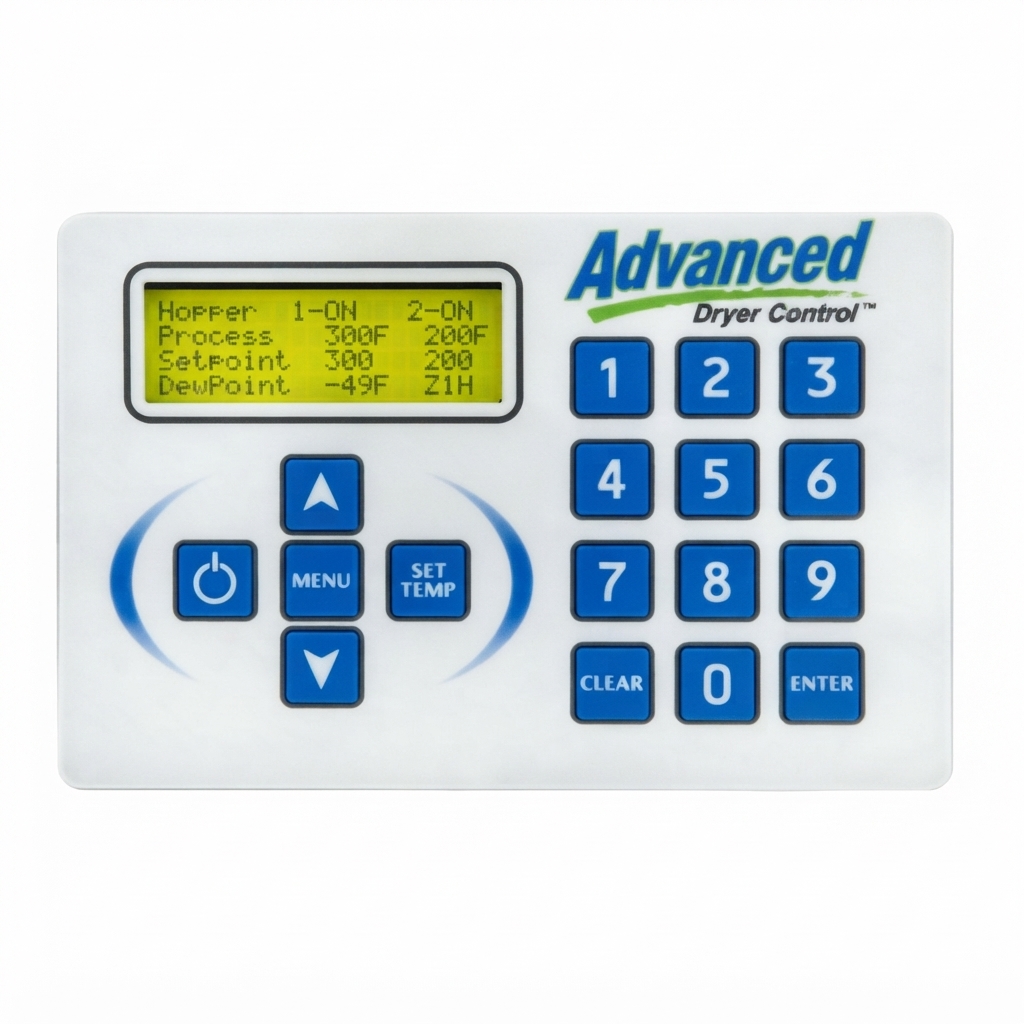

Advanced Dryer Control
ADC control comes standard and includes a -49°F dewpoint monitor and a 7-day timer for automatic starts and stops, along with a high temperature alarm and shutdown. Optional temperature setback prevents over drying

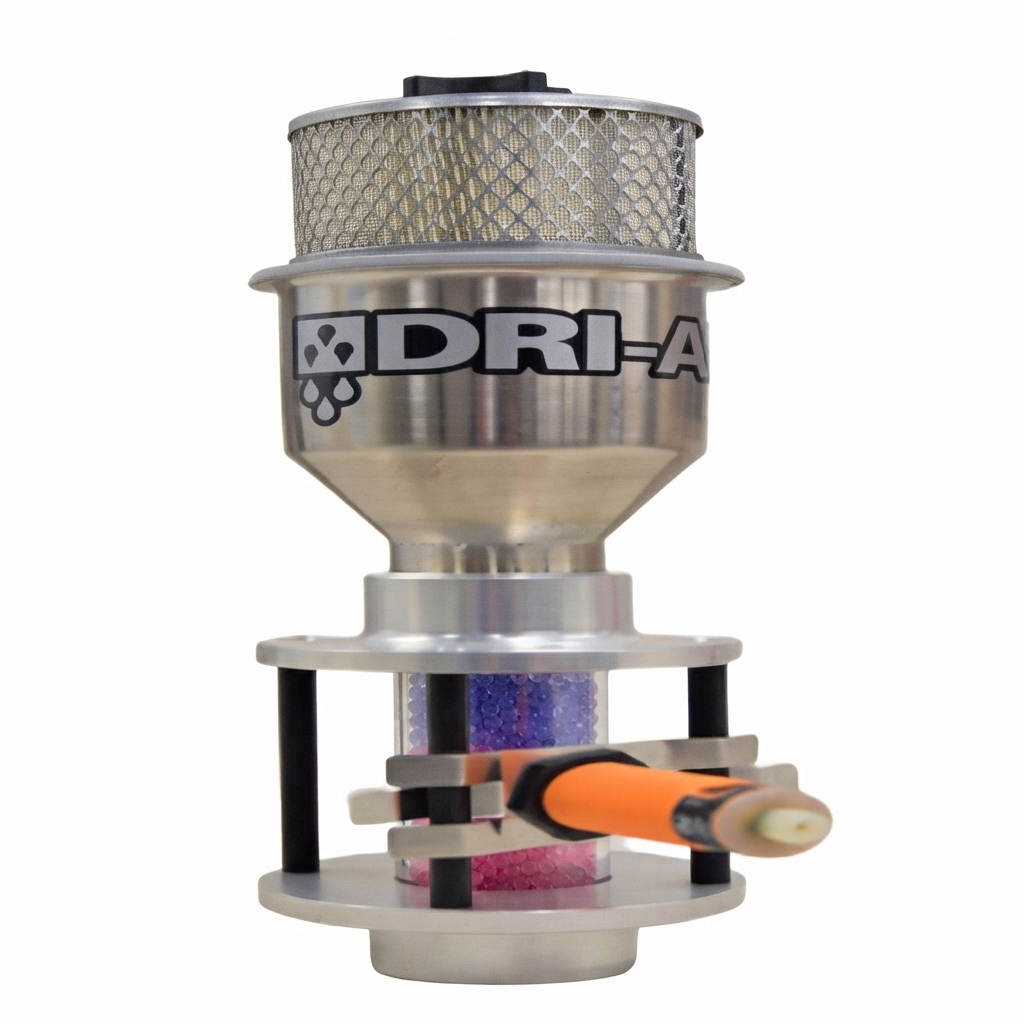

Automatic loading
Our CAL compressed air loaders handle automatic loading of the drying hopper for continuous operation, so the press keeps running without anyone topping up the hopper by hand.

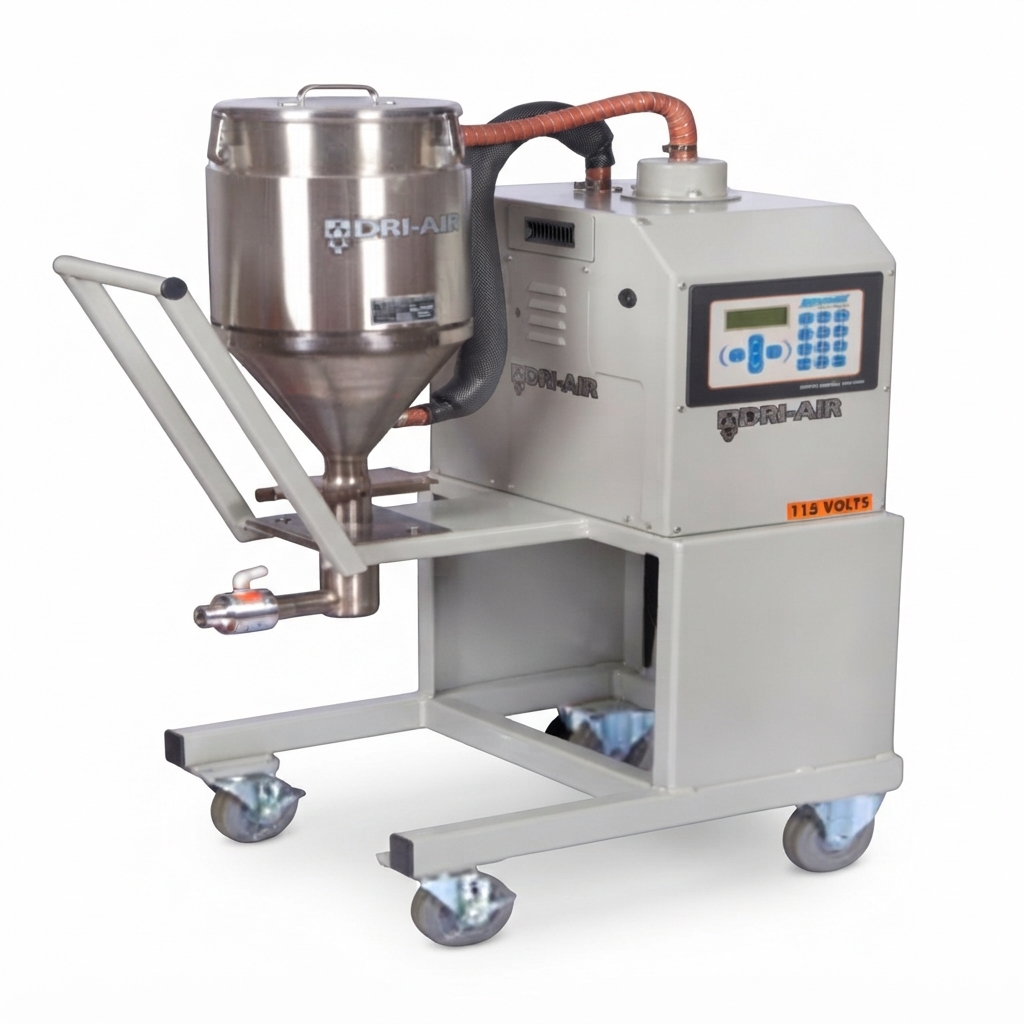

Also available portable
The Arid-X 10 is also available on a portable cart with the drying hopper for an off the press drying solution.

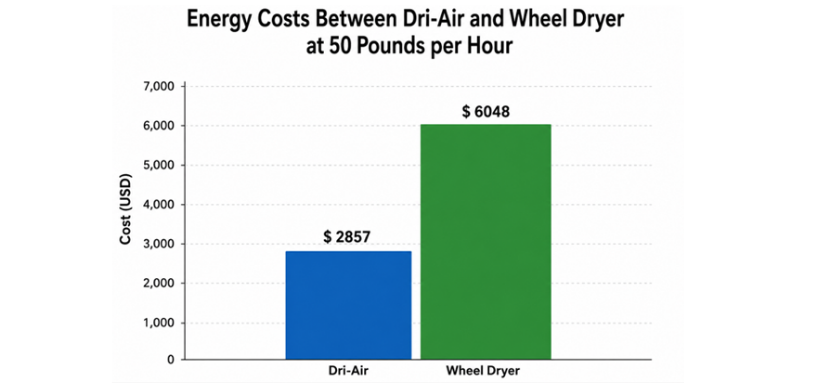

Energy efficiency

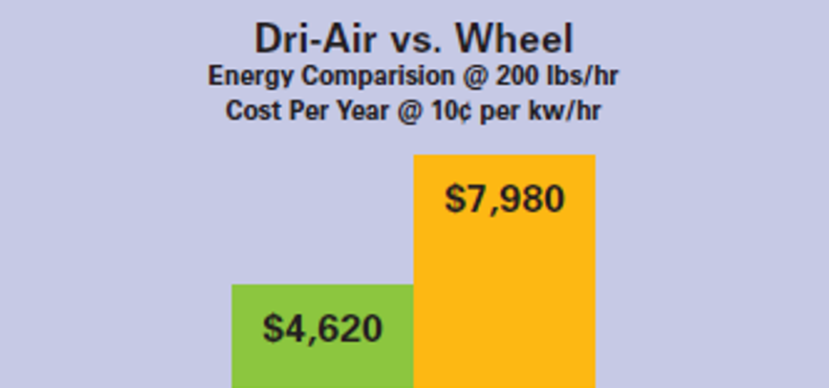

The series runs 30 to 50% more energy efficient than wheel dryers. AI based regeneration adapts dryer operation to your plant and material conditions, and a single blower design serves both process and regeneration air. Dri-Air uses dry air rather than ambient air for regeneration, which keeps the desiccant dry throughout the cycle and delivers dewpoints from -49°F to -130°F

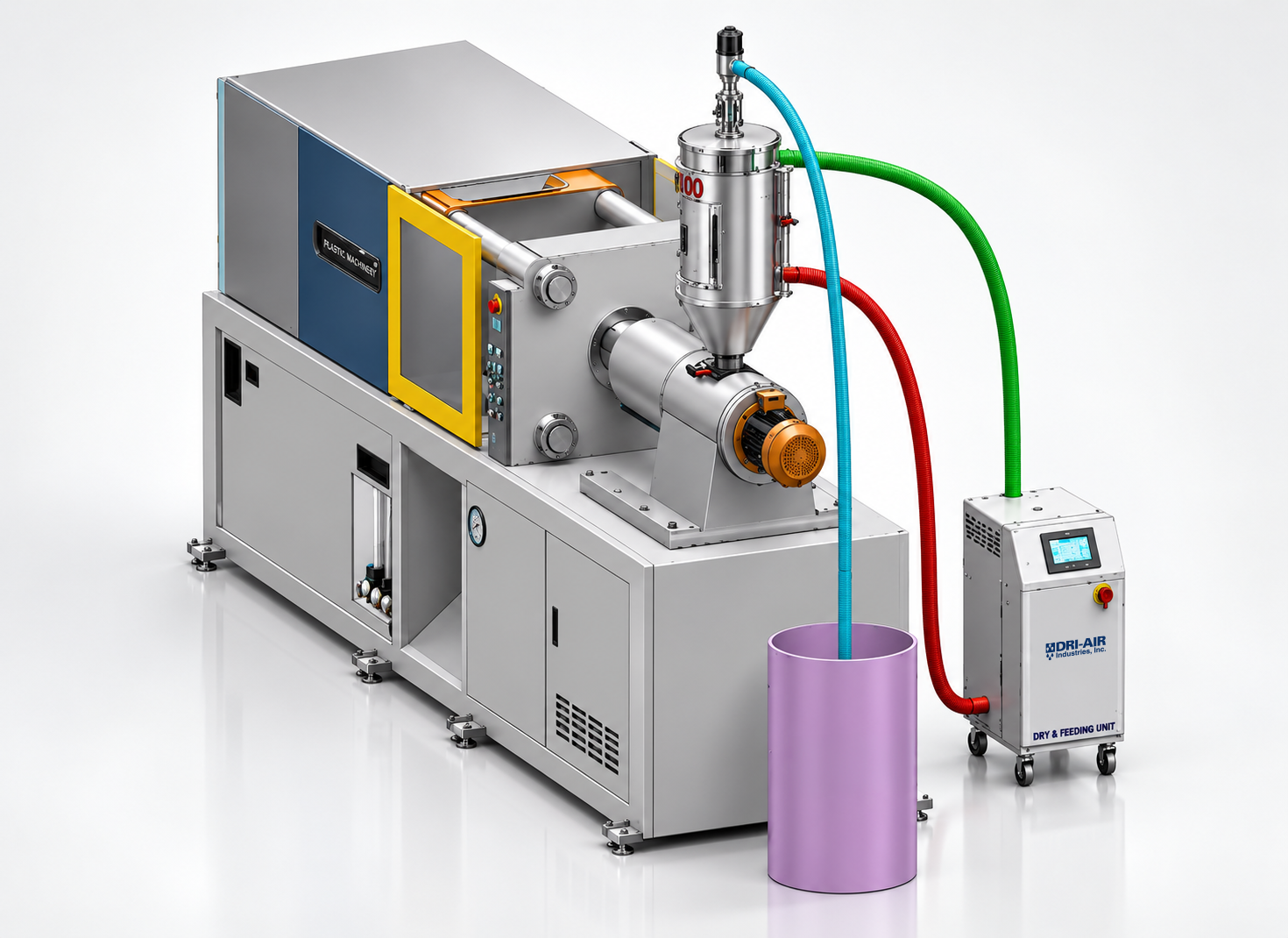

Press mounted drying hoppers
Combining the dryer with a press or extruder mounted drying hopper gives you a complete drying system that keeps resin dry at the throat with no moisture regain. Press mounted hoppers keep dried material dry right at the process, and loaders are available for automatic loading from bags or Gaylords
Sizing your drying hopper
To determine the appropriate drying hopper, calculate approximately three to four times your required throughput. For assistance choosing the most suitable hopper for your application, our team is available at 860-627-5110.
| ARID-X | HP4-X | |||||||
|---|---|---|---|---|---|---|---|---|
|
Dri-Air Model |
Process Rate (2-Bed) | Process Rate (4-Bed) | Dimensions (l/w/h) |
Hose Diameter Supply Return |
||||
| (lbs/hr) | (kg/hr) | (lbs/hr) | (kg/hr) | inch | cm | Supply | Return | |
| 25, 35 | 25, 35 | 14, 18 | 30, 40 | 14, 18 | 24/17/38 | 60/43/97 | 1-1/2" | 1-3/4" |
| 50, 75, 100 | 50, 75, 100 | 25, 35, 45 | 60, 80, 110 | 28, 36, 50 | 32/24/50 | 76/61/127 | 2" | 1-3/4" |
| 150, 200, 300 | 150, 200 | 68, 91 | 160, 220, 330 | 73, 100, 150 | 36/42/64 | 91/107/163 | 3" | 3" |
| 400, 500 | N/A | N/A | 400, 500 | 181, 226 | 74/42/69 | 106/187/175 | 4" | 4" |
| 750, 1000 | N/A | N/A | 750, 1000 | 339, 453 | 74/42/69 | 106/187/175 | 6" | 6" |
| 1500, 2000, 3000 | N/A | N/A | 1500, 2000, 3000 | 680, 908, 1360 | 86/54/74 | 219/138/188 | 8" | 8" |
| 3800 | N/A | N/A | 3000 | 1725 | 101/54/74 | 256/138/188 | 8" | 8" |
Controls
ADC, standard
ADC control is standard and includes a -49°F dewpoint monitor and a 7-day timer for automatic starts and stops, along with a high temperature alarm and shutdown. Optional temperature setback prevents over drying.

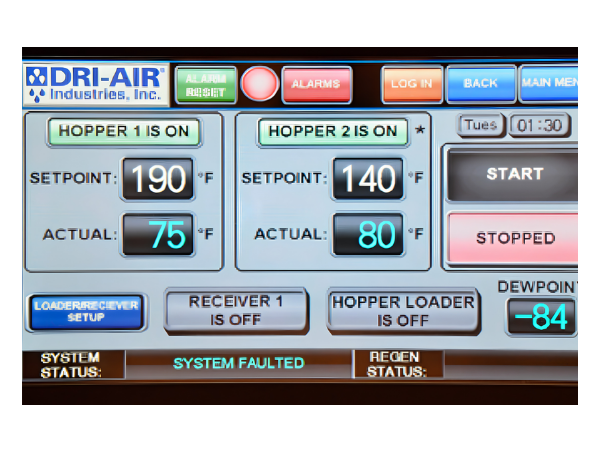

SmartTouch
Also available portable
Energy efficiency
The series runs 30 to 50% more energy efficient than wheel dryers. AI based regeneration adapts dryer operation to your plant and material conditions, and a single blower design serves both process and regeneration air. Dri-Air uses dry air rather than ambient air for regeneration, which keeps the desiccant dry throughout the cycle and delivers dewpoints from -49°F to -130°F.
Press mounted drying hoppers
Combining the dryer with a press or extruder mounted drying hopper gives you a complete drying system that keeps resin dry at the throat with no moisture regain. Press mounted hoppers keep dried material dry right at the process, and loaders are available for automatic loading from bags or Gaylords.
Sizing your drying hopper
To determine the appropriate drying hopper, calculate approximately three to four times your required throughput. For assistance choosing the most suitable hopper for your application, our team is available to help.
| ARID-X | HP4-X | |||||||
|---|---|---|---|---|---|---|---|---|
|
Dri-Air Model |
Process Rate (2-Bed) | Process Rate (4-Bed) | Dimensions (l/w/h) |
Hose Diameter Supply Return |
||||
| (lbs/hr) | (kg/hr) | (lbs/hr) | (kg/hr) | inch | cm | Supply | Return | |
| 25, 35 | 25, 35 | 14, 18 | 30, 40 | 14, 18 | 24/17/38 | 60/43/97 | 1-1/2" | 1-3/4" |
| 50, 75, 100 | 50, 75, 100 | 25, 35, 45 | 60, 80, 110 | 28, 36, 50 | 32/24/50 | 76/61/127 | 2" | 1-3/4" |
| 150, 200, 300 | 150, 200 | 68, 91 | 160, 220, 330 | 73, 100, 150 | 36/42/64 | 91/107/163 | 3" | 3" |
| 400, 500 | N/A | N/A | 400, 500 | 181, 226 | 74/42/69 | 106/187/175 | 4" | 4" |
| 750, 1000 | N/A | N/A | 750, 1000 | 339, 453 | 74/42/69 | 106/187/175 | 6" | 6" |
| 1500, 2000, 3000 | N/A | N/A | 1500, 2000, 3000 | 680, 908, 1360 | 86/54/74 | 219/138/188 | 8" | 8" |
| 3800 | N/A | N/A | 3000 | 1725 | 101/54/74 | 256/138/188 | 8" | 8" |
Controls
ADC, standard
ADC control is standard and includes a -49°F dewpoint monitor and a 7-day timer for automatic starts and stops, along with a high temperature alarm and shutdown. Optional temperature setback prevents over drying.
SmartTouch
