Dryers
Floor Mount Dryers
No moving or rotating internal parts
- Space-saving compact design available for process rates up to 750 lbs/hr.
- Models are available in industry-standard 2-bed (ARID-X FM Series) and high-performance 4-bed (HP4-X FM Series).
- Combine with a press/extruder mounted drying hopper for a complete system.
- Dryer hoses and casters are included.
Energy efficiency:
- Most energy efficient dryer in the market when compared to compressed air, rotary wheel, vacuum and other dual bed dryers.
- Single blower design for process and regeneration air.
- On-demand regeneration adjusts to ambient conditions, materials and process rates.
- Desiccant tower design maximizes heat transfer.
- Low dew point air is used for regeneration or cool down of desiccant towers.
System Features:
- Can be used with Hopper Bank Series and multi-hopper systems.
- ADC Control is standard and includes:
- -49°F dewpoint monitor
- 7 day timer
- Diagnostic functions
- Dewpoint, heater, and temperature alarm
Optional items include:
- Water after-cooler, plasticizer trap and high temperature hose.
- Visual and audible alarms available.
- Temperature setback reduces drying temperature when material is dry to prevent overdrying.
- Dri-Touch, 7” touch screen on HP4-X models.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| 23, 35 | 23, 35 | 14, 18 | 30, 40 | 14, 18 | 24×21×36 | 1" | 1-3/4" |
| 50, 75, 100 | 50, 75, 100 | 22, 33, 45 | 61, 92, 119 | 28, 38, 55 | 32×28×43 | 2" | 1-3/4" |
| 150, 200, 300 | 150, 200 | 68, 91 | 183, 220, 300 | 73, 100, 160 | 36×14×44 | 3" | 3" |
| 400, 500 | N/A | N/A | 440, 550 | 181, 226 | 74×13×66 | 4" | 4" |
| 750, 1000 | N/A | N/A | 770, 1000 | 308, 453 | 74×13×66 | 6" | 6" |

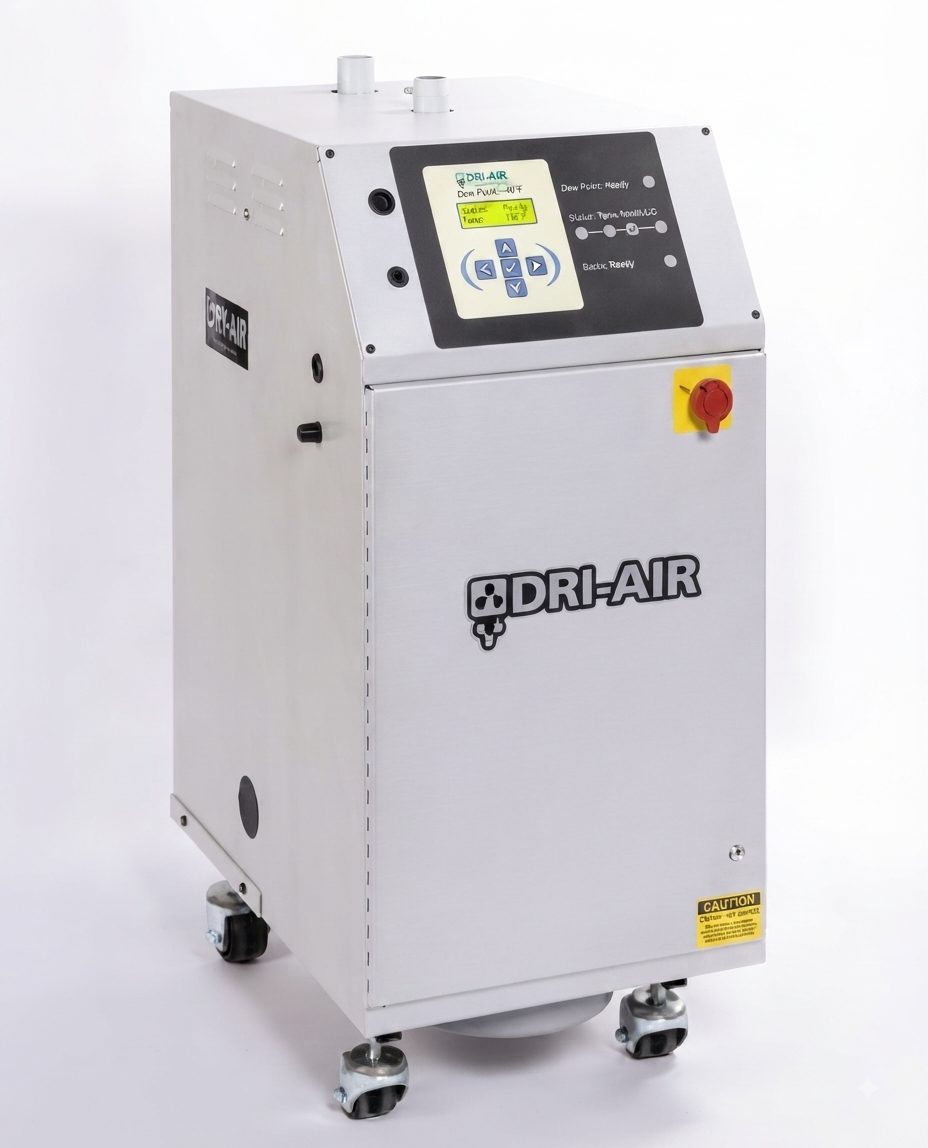

Model 50-100 shown with optional touch screen.
Model 150, 200 & 300 shown with ADC control and optional water after-cooler.
Removable panels allow for easy access to internal components.
Stainless Steel Drying Hoppers
Stainless Steel Drying Hoppers — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
Portable Mini Desiccant and Compressed Air Dryers
Portable Mini Desiccant and Compressed Air Dryers — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
Multi-Hopper Bank System
Multi-Hopper Bank System — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
Mini Dryers Desiccant and – “NEW” Micro Compressed air & Nitrogen
Mini Dryers Desiccant and – “NEW” Micro Compressed air & Nitrogen — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
Hot Air Systems
Hot Air Systems — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
Hopper Mount Dryers
Hopper Mount Dryers — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
Description of Options
Description of Options — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
Compressed Air System – Single Hopper
Compressed Air System – Single Hopper — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
Closed Loop Dri-Air Loading Systems
Closed Loop Dri-Air Loading Systems — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
2 and High Performance 4 Bed Portable Desiccant Dryers
2 and High Performance 4 Bed Portable Desiccant Dryers — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
4-Bed Dual Hopper Portable Dryers
4-Bed Dual Hopper Portable Dryers — description and technical specifications pending.
| Dri-Air Model | ARID-XProcess Rate [2 Bed] | HP4-XProcess Rate [4 Bed] | Dimensions (WxH)inch | Hose Diameter | |||
|---|---|---|---|---|---|---|---|
| [lbs/hr] | [kg/hr] | [lbs/hr] | [kg/hr] | Supply | Return | ||
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
| — | — | — | — | — | — | — | — |
Image pending
Image pending
Image pending
